This cockpit set is specially designed to fit DeAgostini 1/18 Scale X-Wing.

Two clear insert types are available. For more information on the Brickstuff version please follow .

The set includes:

• SLA resin cockpit frame
• SLA resin plant-on parts including clear parts
• SLA resin clear photo-conducting insert
• A sheet of photo-etched parts
• A sheet of decals
• Full-color assembly instructions
• A metalized label with a unique serial number

No modification of the stock parts is required. This cockpit slides into the cockpit tub replacing the stock cockpit.

The set comes with a hollow cockpit frame, some add-on parts, a clear specially designed light-conducting insert, a sheet of photoetched parts, and a decals sheet.

The set includes both ANH and ESB front control panels as well as the targeting computer, which can be installed in a retracted or engaged position. Some of the plant-on parts are reused from the stock set of parts supplied with the model.

The photo-etched parts work as panels for the frame in order to be able to light up the cockpit from inside:

The decals are applied to the photo-etched parts. They are pushed inside all the recesses and panel lines to create an effect of a perfect seamless multilayered surface. We recommend using Mr. Mark Setter and Mr. Mark Softer decal solutions for the best results.

It is recommended to clear coat the photo-etched parts after the decals are dry in order to make them more durable.

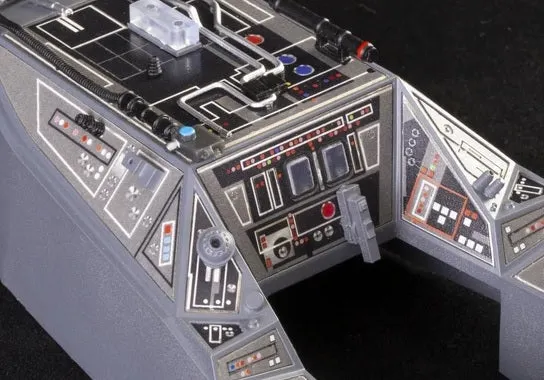

ANH front control panel:

ESB front control panel:

 The clear light-conducting insert slides inside from the bottom of the cockpit and fits snugly at the top area of the cockpit right underneath the photo-etched parts. There is a 3mm opening on the back of the insert in order to accommodate the center 3mm LED light supplied as a stock part.

The photo-etched parts effectively block the light coming from the clear insert, which results in a bright, life-like appearance of the light-up effect:

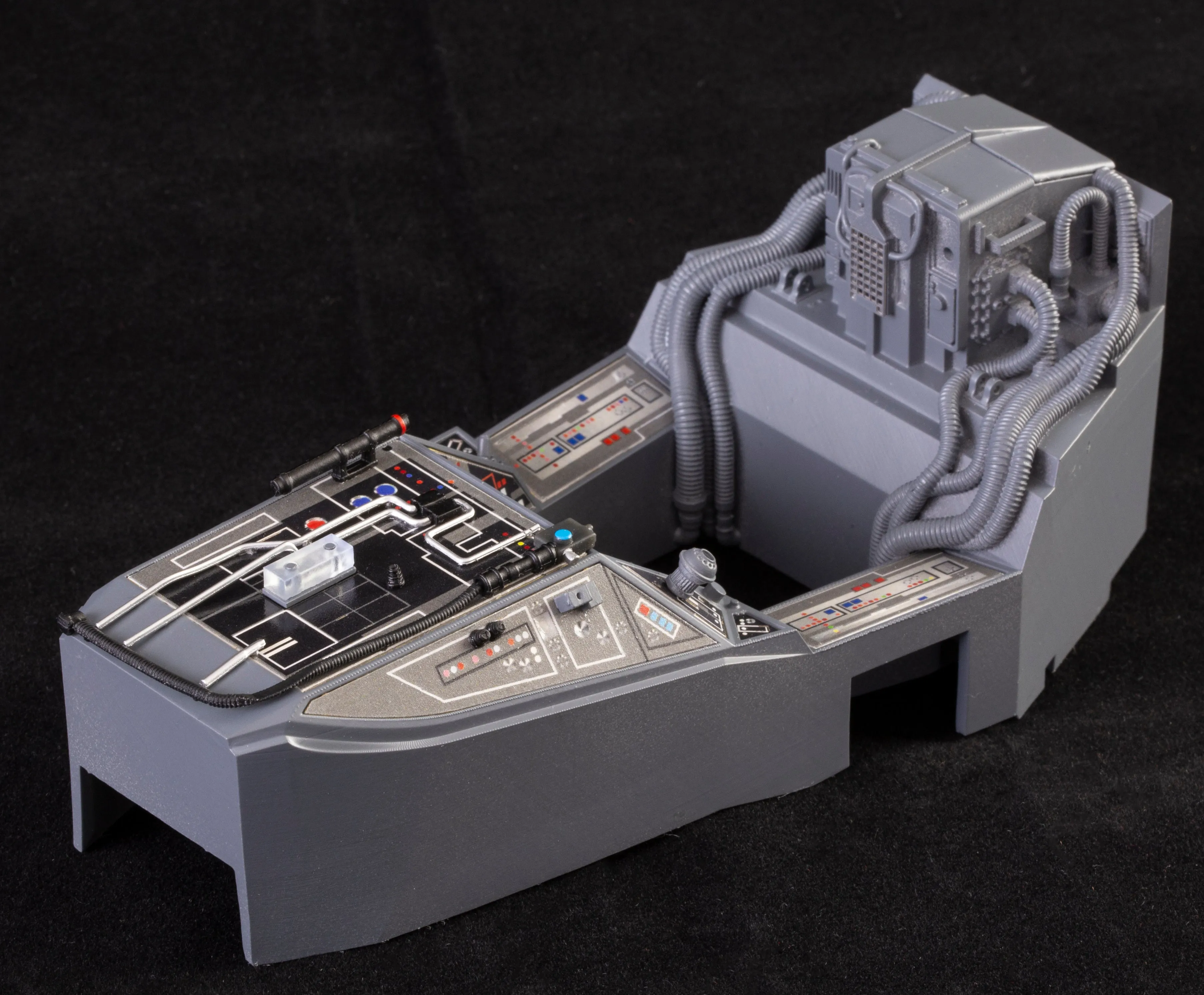

 The below images show a fully assembled cockpit. The pilot not included with the cockpit.

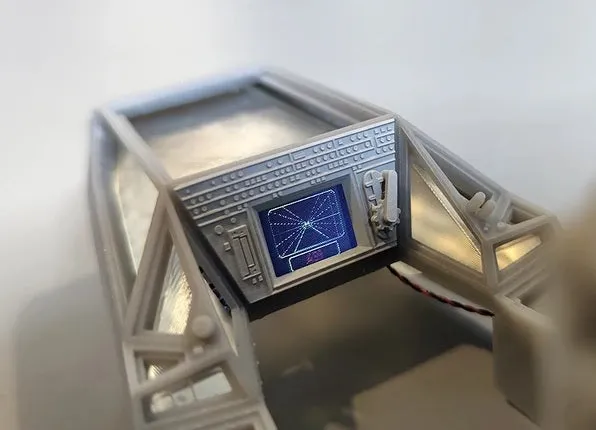

*Brickstuff LCD version of the clear insert includes the insert specially designed to accommodate the screen and a separate front panel. The Brickstuff LCD screen can be purchased here
